Author Topic: Pixel binning patterns in LiveView (Read 77626 times)

bouncyball · « **Reply #75 on:** January 14, 2019, 08:10:59 AM »

Quote from: Levas on January 13, 2019, 11:36:37 AM

If somehow the raw file can be reconstructed to a new raw file according to the binning pattern, then you have a good starting point:

I really dig the unbining idea. I need to understand more the bining theory and need some visual examples.

Levas · « **Reply #76 on:** January 14, 2019, 02:19:23 PM »

As far as I know, the Canon's do horizontal binning the following way:
You have a standard Bayer pattern.
And on a horizontal line, each chunk of 6 pixels is readout and all 3 red pixels are averaged to 1 value and all green pixels are averaged to one value etc. etc.

To unbin this binned image I was thinking to do something like this:
First you're gonna stretch the raw file by a factor 3 in horizontal direction, so copy each red/green pair 3 times, and in the next line, copy each green/blue pair three times.
So for example in a red/green line, you end up with each 6 pixels having 3 times the same green value and 3 times the same red value.
In each 6 pixel block, you can keep the values of the pixels in the middle, So pixel 3 and 4 in a chunk of 6 are already good.
The green pixel on the left side of a chunk of 6 has to averaged with the green neighbour pixel in the chunk of 6 pixels that are on the left side.
The green pixel at the right end of a chunk of 6 pixels, has to be averaged with a neighbouring green pixel on the right side of the chunk of 6 pixels.
Looks like this:

Not sure if this is clear enough ?
Also not sure if this is gonna give better results

But if anyone can do this, I'd love to find out how the end results look.

bouncyball · « **Reply #77 on:** January 14, 2019, 05:51:31 PM »

I think it is a bit wrong. Look at the 1st post of this thread. a1ex showed the 5d3 and all other (lower) camera bining methods. The averaging is done not exactly by 6 raw line pixels but a next pixel for every color (R,G+1 for first line and G,B+1 for second line). 5D3 is a complete another story with 3 by 3 binning.

I thought about what you've showed above and the algo you proposed, and according to the initial and the end values and their differences this is very inaccurate approach. Anyway after averaging the information is lost forever and it is impossible to recover it except only very basic cases.

Well... I'm gonna think about it more, but... maybe a1ex could suggest, does it worth a try or not.

regards
bb

Levas · « **Reply #78 on:** January 14, 2019, 06:43:27 PM »

You’re right, it’s not done in chunks of 6 pixels, there is a shift for the other color channel.

The suggested algo does indeed not approach the original raw data, but that’s never possible, like you said, the data is lost forever.

I expect that such an algorythm or any variation on it, can give better results in the pixelated aliasing that happens on round curves or straight lines.

And indeed curious if Alex has any ideas, did a great job with dual-iso.

reddeercity · « **Reply #79 on:** January 15, 2019, 07:30:07 AM »

Found a different pinning mode on the 5d2 in 3x crop_mode (5x zoom)

Code: [Select]

ADTG12[100c]0x01This give a vertical squeeze similar to 3x5 in 1:1FHD(720p mode on other cams)

Tried to correct the W/B & colors , bad black levels plus other issue -- all blue channel it seems
In 3x crop_mode 5632x514


Un-squeezed @ 167%


the original dng's -- 5632x514

M11-1730_frame_1_5632x514.dng

Exported DNG from MLV App with 167% vertical stretch

M11-1730_frame_1_5632x857_167precent_vertical.dng

Levas · « **Reply #80 on:** January 15, 2019, 09:14:25 AM »

Looks indeed like there is missing a color channel.
I think you did a lineskipping factor of 1 in 5x zoom mode.
That would cause the missing color channel, you're only reading the Blue/Green pixel lines.
If that's the case, the unsqueezing factor should be 2 instead 1.67

reddeercity · « **Reply #81 on:** January 16, 2019, 03:26:31 AM »

Yea , your right -- I just check it that even better , now if I can get all the channel working .

5632x1028 from 5632x514 with 200% vertical stretch


Teamsleepkid · « **Reply #82 on:** January 17, 2019, 05:59:37 AM »

can we use it for black and white if we don't get the other color channel? just sayin..

ilia3101 · « **Reply #83 on:** January 19, 2019, 02:25:26 PM »

Quote from: reddeercity on January 16, 2019, 03:26:31 AM

Yea , your right -- I just check it that even better , now if I can get all the channel working .

5632x1028 from 5632x514 with 200% vertical stretch


No way to get 3 channels with 2x stretch I think, unless you make the camera do a really complex binning pattern.

Levas · « **Reply #84 on:** January 19, 2019, 02:44:22 PM »

Ilia is right, you will never get 3 channels by using a lineskipping value of 1.
You always end up with 2 color channels, you are reading only the green/red pixel lines, or only the green/blue pixel lines, because of the lineskipping value of 1.

This post from Alex is still interesting, I'm not sure if it is possible.
But it would be cool to explore if their is some sort of way to create decent images out of 2 color channels instead of 3.

Quote from: a1ex on December 02, 2017, 11:59:48 AM

Food for thought: can we recover blue from red?

a1ex · « **Reply #85 on:** February 18, 2019, 08:57:50 PM »

An interesting pixel binning mode found by mistake by Danne & Masc on the EOS M.

Quote from: masc on February 17, 2019, 06:20:57 PM

Test images:

Quote from: masc on February 17, 2019, 10:01:05 PM

Okay. Done. Here you are: https://www.dropbox.com/s/70ig9z535kixmk0/binningtest3.zip?dl=0

Quote from: a1ex on February 18, 2019, 08:50:45 PM

Pretty interesting binning pattern. It is, indeed, 3x3 readout with line/column skipping, i.e. using only one pixel out of 9. However, it has an additional property - every two columns are adjacent. This results in... even more moiré!

Details: extreme-moire.html

Also confirmed the following binning pattern for the regular 1080p 3x3 mode on EOS M, likely used in most other Canons, with the same test code, on these test images. No write-up for this one yet.

Quote from: a1ex on January 21, 2016, 08:52:22 AM

Levas · « **Reply #86 on:** February 19, 2019, 10:30:42 PM »

Ok found something

Danne told me how he got the ugly moire, (3x3 with horizontal pixel skipping and vertical line skipping).
And I can get it on the 6d too.
On 6d it has to do with 1x zoom and 5x zoom mode.
If you are in 5x zoom mode, no horizontal pixel binning is done.
In 5x zoom, when you alter 2 CMOS registers and the 800c lineskipping register and the 8000 register, to transform 5x zoom to normal full sensor view...you get the ugly moire.

So got me thinking, what crop_presets I made for 5x zoom mode which uses full sensor view...Oh no, the 1x3 readout mode

Remember this post:
https://www.magiclantern.fm/forum/index.php?topic=16516.msg210005#msg210005

I kept thinking about it, why does unstretched horizontal footage looks that bad, it's made of pixelbinned data where is al that moire coming from...
Well now we know, the example you see there is made in 5x zoom mode, so no horizontal pixelbinning was done there
Did some testing with a new 1x3 mode in 1 x zoom, and stretching that 3 times horizontal looks way better

Getting late now, but maybe I can do some outdoor tests tomorrow, with some nice trees with breaches and stuff.

theBilalFakhouri · « **Reply #87 on:** February 19, 2019, 11:23:01 PM »

That's great @Levas, Maybe there is a register to control Binning Pixels? One of the ADTG registers? or maybe one of the CMOS registers that we don't know what's doing like CMOS 8? of course this only a guess, it will be cool if you or Danne start overriding and finding which registers control the Binning process (mv1080 vs x5 registers values), I don't have my cam to do that

Levas · « **Reply #88 on:** February 24, 2019, 11:45:06 AM »

Better late then never, here is some 1x3 footage from the 6d, stretched 3x horizontal to get 5K.
It's not bad, but once you compare it to a photo taken from the same scene, you see that this movie example is far from 5K

It's still a lot better then what I got before, now I'm using a setting that actually bins horizontally.
Here's the folder with the 5K movie clip and 3 JPG, one photo, one frame from the movie clip(1x3 stretched 3x horizontal) and one frame from a 3x3 movie blown up 300%.
https://drive.google.com/drive/folders/11_1RjTOQZPnhgJpxOQOp6xGSqbsnzSL2?usp=sharing

Danne · « **Reply #89 on:** February 24, 2019, 11:48:39 AM »

Horizontal? Care yo share source?

Levas · « **Reply #90 on:** February 24, 2019, 12:04:22 PM »

Sure, uploaded the source in the same folder:
https://drive.google.com/open?id=11_1RjTOQZPnhgJpxOQOp6xGSqbsnzSL2

First I had better results with stretching vertical, but that was because I was doing 1x3 without pixelbinning...didn't know that

So with horizontal stretch I got real bad results, lots of moire.
Now I'm doing 1x3 with pixelbinning and the results are better.

Levas · « **Reply #91 on:** February 24, 2019, 12:09:10 PM »

Quote from: theBilalFakhouri on February 19, 2019, 11:23:01 PM

That's great @Levas, Maybe there is a register to control Binning Pixels? One of the ADTG registers? or maybe one of the CMOS registers that we don't know what's doing like CMOS 8? of course this only a guess, it will be cool if you or Danne start overriding and finding which registers control the Binning process (mv1080 vs x5 registers values), I don't have my cam to do that

I guess that there is a ADTG register that controls the pixelbinning, probably one of these, haven't done any testing, but these look interesting as differences after pressing the magnifying button to go from 1 x zoom to 5 x zoom mode
https://docs.google.com/spreadsheets/d/1iapLI7UrgfCJGwPSFsyhYeKl8fSTY4RVXvDR7MiaOp4/edit#gid=591036118

Danne · « **Reply #92 on:** February 24, 2019, 12:18:20 PM »

Cool. Will check out during next week.

Levas · « **Reply #93 on:** February 24, 2019, 01:18:19 PM »

I think I found the registers for binning.

When I'm in 5x zoom mode, and I lock the values of ADTG2 [8183] and ADTG2 [8184] and go back to 1x zoom. I get really bad moire.

Value for 8183 and 8184 in 5x zoom are '0'
Normally in 1x zoom they are:
8183 = 0x35 (53 in decimals)
8184 = 0x3b (59 in decimals)

Not sure what those values mean in 1x zoom...but I'm curious what standard values for 8183 and 8184 on the 5d3 are, which does vertical binning.
Still have a little hope for vertical binning as on the 5d3 is just a register setting

Levas · « **Reply #94 on:** February 24, 2019, 02:59:47 PM »

Comparison, at 200%.
Above, normal horizontal pixelbinning.
Below, no horizontal pixelbinning (Register 8183 and 8184 set to value 0).

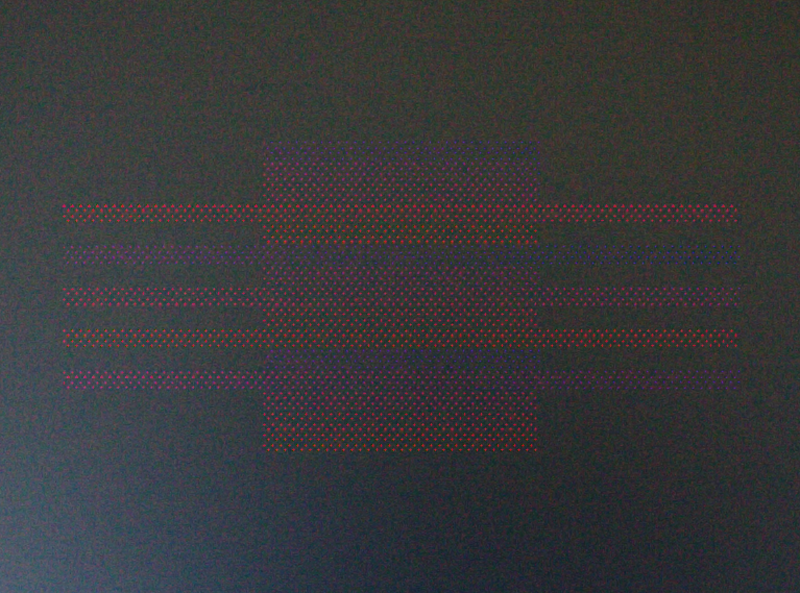

Danne · « **Reply #95 on:** February 24, 2019, 03:11:32 PM »

Wow. Good catch dude. think you nailed it:
Tested on my eosm(mcm rewired mode):

Code: [Select]

                adtg_new[18] = (struct adtg_new) {6, 0x8183, 0x21};
                adtg_new[19] = (struct adtg_new) {6, 0x8184, 0x7b};

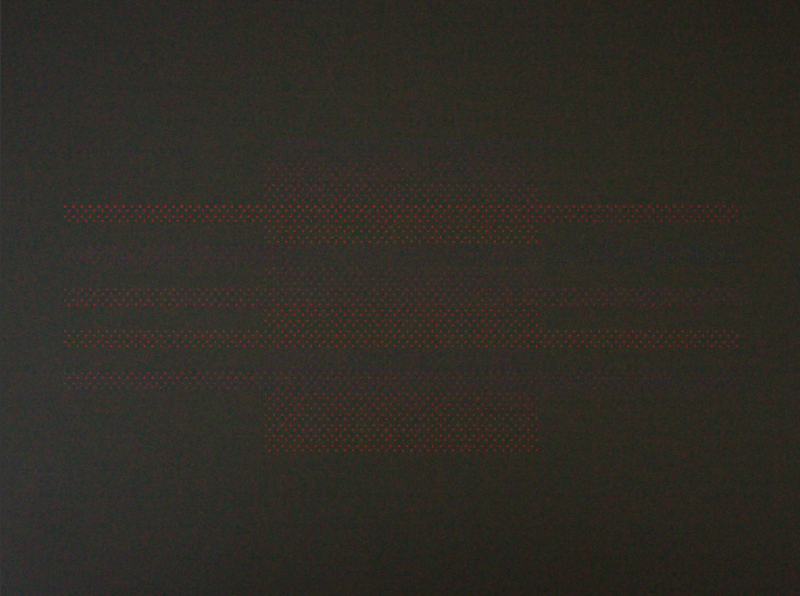

Zeroed:

Code: [Select]

                adtg_new[18] = (struct adtg_new) {6, 0x8183, 0x0};
                adtg_new[19] = (struct adtg_new) {6, 0x8184, 0x0};

Keep looking maybe we can even eliminate focus pixels?

theBilalFakhouri · « **Reply #96 on:** February 24, 2019, 05:34:15 PM »

That's Great! Something is happening here, I hope we are not far away from vertical pixel binning but maybe also it is not that simple , we will see

a1ex · « **Reply #97 on:** February 24, 2019, 05:40:48 PM »

Very nice find!

Quote from: Levas on February 24, 2019, 01:18:19 PM

... I'm curious what standard values for 8183 and 8184 on the 5d3 are

Code: [Select]

# same in 25/30/50/60p; same as EOS M
700D/1080p24.log:57631: 1.216.977         Evf:000179b0:91:01: [REG] ADTG:[0x81830021]
700D/1080p24.log:57638: 1.217.004         Evf:000179b0:91:01: [REG] ADTG:[0x8184007b]

# same in 1080p crop modes
700D/x5.log:1364: 4.437.292         Evf:000179b0:91:01: [REG] ADTG:[0x81830000]
700D/x5.log:1371: 4.437.319         Evf:000179b0:91:01: [REG] ADTG:[0x81840000]

# same in 25/30/50/60p; not set in x5
5D3/1080p24.log:17153:  1.178535         Evf:00011754:91:01: [REG] ADTG:[0x81830038]
5D3/1080p24.log:17167:  1.178565         Evf:00011754:91:01: [REG] ADTG:[0x8184002d]

# same in 25/30/50/60p and 640x480 crop 50/60p; not set in x5; same as 600D
60D/1080p25.LOG:14717:  1.987841         Evf:ff2c98b4:91:01: [REG] ADTG:[0x81830025]
60D/1080p25.LOG:14730:  1.987874         Evf:ff2c98b4:91:01: [REG] ADTG:[0x81840021]

# large value?
1100D/720p25-full.LOG:1077: 0.479142         Evf:ff2dbc54:91:01: [REG] ADTG:[0x818301c7]
1100D/720p25-full.LOG:1078: 0.479177         Evf:ff2dbc54:91:01: [REG] ADTG:[0x818401c0]

# same in 25/30p; not set in x5
5D2/1080p24.log:27234:  0.533919  LiveViewMg:ffa35de8:91:01: [REG] ADTG:[0x1183003c]
5D2/1080p24.log:27261:  0.534003  LiveViewMg:ffa35de8:91:01: [REG] ADTG:[0x1184003a]

# close to 1100D?
500D-dm-0009.log:14833:5C89C> LiveViewMg:ff22f9b4:91:01: [REG] ADTG:[0x118301c6]
500D-dm-0009.log:14836:5C933> LiveViewMg:ff22f9b4:91:01: [REG] ADTG:[0x118401c0]

DeafEyeJedi · « **Reply #98 on:** February 24, 2019, 08:01:49 PM »

Thumbs up @Levas!

Levas · « **Reply #99 on:** February 27, 2019, 08:26:21 PM »

Thanks for the numbers Alex.

https://docs.google.com/spreadsheets/d/1iapLI7UrgfCJGwPSFsyhYeKl8fSTY4RVXvDR7MiaOp4/edit#gid=1718744807

Register 5D3     5D2     6D     EOS M / 700D     60D     500D    1100D
8183 / 1183   0x38 (56 dec)   0x3c (60 dec)   0x35 (53 dec)     0x21 (33 dec)     0x25 (37 dec)   0x1c6 (454 dec)   0x1c7 (455 dec)
8184 / 1184   0x2d (45 dec)   0x3a (58 dec)   0x3b (59 dec)     0x7b (123 dec)      0x21 (33 dec)   0x1c0 (448 dec)   0x1c0 (448 dec)

Resolution     5760 x 3840   5616 x 3744   5472 x 3648     5184 x 3456     5184 x 3456     4752 x 3168     4272 x 2848

The register values of the fullframe camera's are close to each other, as is their resolution.
EOS M / 700D are just weird

small 8183 value, big 8184 value.
And both 500D and 1100D have really hit values, why ?
Where is the logic $:-\$
